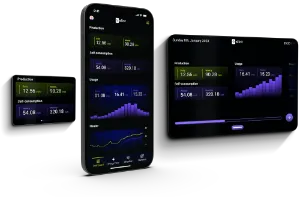

Image {
    source: @image-url("mini-banner.png");
}

slint

Use the Image element to display an image.

Properties

colorize

brush default: a transparent brush

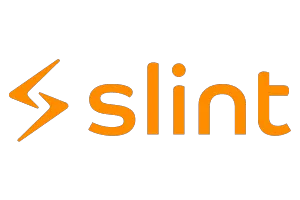

When set, the image is used as an alpha mask and is drawn in the given color (or with the gradient).

Image {
    source: @image-url("slint-logo-simple-dark.png");
    colorize: darkorange;
}

slint

horizontal-alignment

enum ImageHorizontalAlignment default: center

ImageHorizontalAlignment

This enum specifies the horizontal alignment of the source image.

• center: Aligns the source image at the center of the Image element.
• left: Aligns the source image at the left of the Image element.
• right: Aligns the source image at the right of the Image element.

vertical-alignment

enum ImageVerticalAlignment default: center

ImageVerticalAlignment

This enum specifies the vertical alignment of the source image.

• center: Aligns the source image at the center of the Image element.
• top: Aligns the source image at the top of the Image element.
• bottom: Aligns the source image at the bottom of the Image element.

Image Tiling

horizontal-tiling

enum ImageTiling default: none

ImageTiling

This enum specifies how the source image will be tiled.

• none: The source image will not be tiled.
• repeat: The source image will be repeated to fill the Image element.
• round: The source image will be repeated and scaled to fill the Image element, ensuring an integer number of repetitions.

vertical-tiling

enum ImageTiling default: none

ImageTiling

This enum specifies how the source image will be tiled.

• none: The source image will not be tiled.
• repeat: The source image will be repeated to fill the Image element.
• round: The source image will be repeated and scaled to fill the Image element, ensuring an integer number of repetitions.

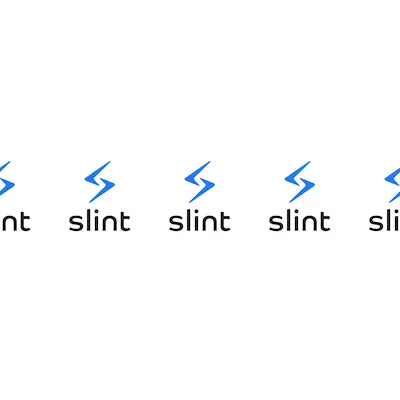

Image {
    width: 400px;
    height: 400px;
    source: @image-url("slint-logo.png");
    horizontal-tiling: repeat;
}

slint

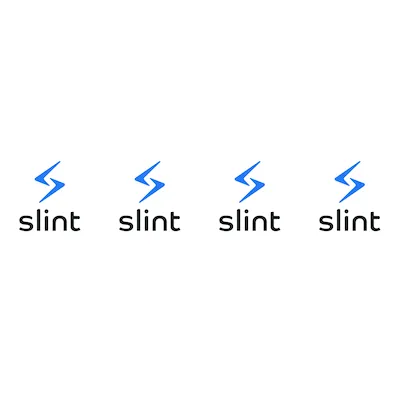

Image {
    width: 400px;
    height: 400px;
    source: @image-url("slint-logo.png");
    horizontal-tiling: round;
}

slint

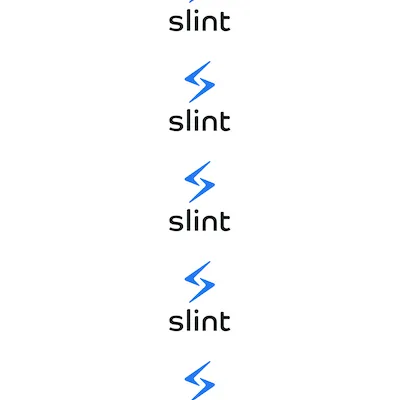

Image {
    width: 400px;
    height: 400px;
    source: @image-url("slint-logo.png");
    vertical-tiling: repeat;
}

slint

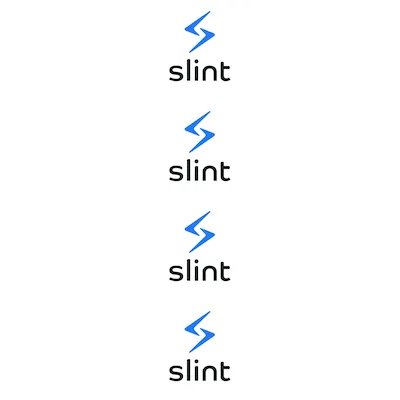

Image {
    width: 400px;
    height: 400px;
    source: @image-url("slint-logo.png");
    vertical-tiling: round;
}

slint

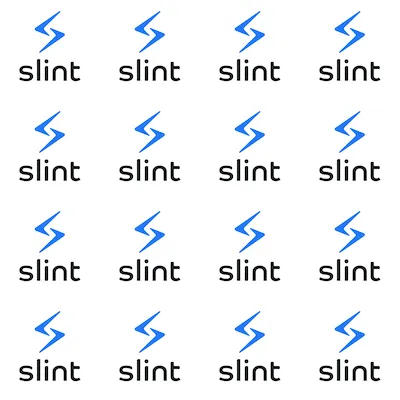

Image {
    width: 400px;
    height: 400px;
    source: @image-url("slint-logo.png");
    vertical-tiling: round;
    horizontal-tiling: round;
}

slint

image-fit

enum ImageFit default: `contain` when the `Image` element is part of a layout, `fill` otherwise

ImageFit

This enum defines how the source image shall fit into an Image element.

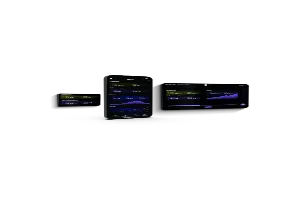

• fill: Scales and stretches the source image to fit the width and height of the Image element.
• contain: The source image is scaled to fit into the Image element’s dimension while preserving the aspect ratio.

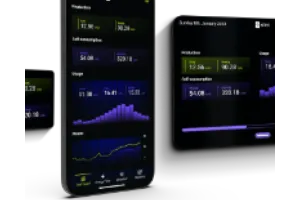

• cover: The source image is scaled to cover into the Image element’s dimension while preserving the aspect ratio. If the aspect ratio of the source image doesn’t match the element’s one, then the image will be clipped to fit.

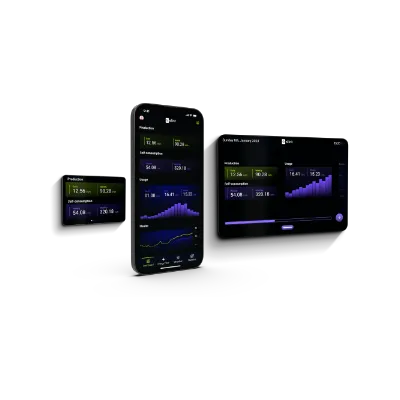

• preserve: Preserves the size of the source image in logical pixels. The source image will still be scaled by the scale factor that applies to all elements in the window. Any extra space will be left blank.

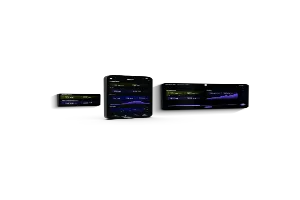

Image {
    width: 200px; height: 50px;
    source: @image-url("mini-banner.png");
    image-fit: fill;
}

slint

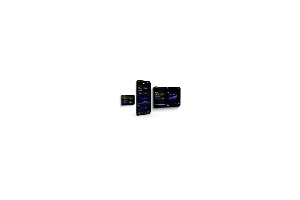

Image {
    width: 250px; height: 40px;
    source: @image-url("mini-banner.png");
    image-fit: contain;
}

slint

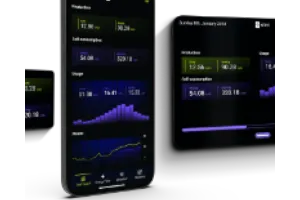

Image {
    width: 250px; height: 250px;
    source: @image-url("mini-banner.png");
    image-fit: cover;
}

slint

Image {
    width: 400px; height: 400px;
    source: @image-url("mini-banner.png");
    image-fit: preserve;
}

slint

image-rendering

enum ImageRendering default: smooth

ImageRendering

This enum specifies how the source image will be scaled.

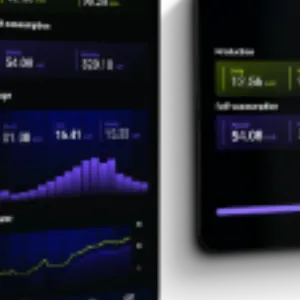

• smooth: The image is scaled with a linear interpolation algorithm.

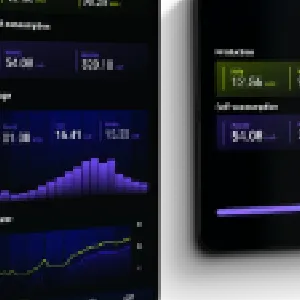

• pixelated: The image is scaled with the nearest neighbor algorithm.

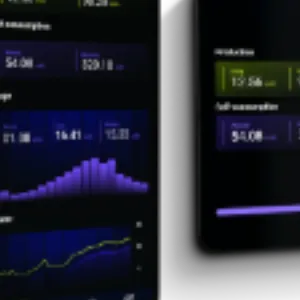

Image {
    width: 800px;
    source: @image-url("mini-banner.png");
    image-rendering: smooth;
}

slint

Image {
    width: 800px;
    source: @image-url("mini-banner.png");
    image-rendering: pixelated;
}

slint

Source Properties

source

image default: the empty image

The image type is a reference to an image. It’s defined using the @image-url("...") construct. The address within the @image-url function must be known at compile time.

Slint looks for images in the following places:

1. The absolute path or the path relative to the current .slint file.
2. The include path used by the compiler to look up .slint files.

Access an image’s source dimension using its source.width and source.height properties.

export component Example inherits Window {
    preferred-width: 150px;
    preferred-height: 50px;

    in property <image> some_image: @image-url("https://slint.dev/logo/slint-logo-full-light.svg");

    Text {
        text: "The image is " + some_image.width + "x" + some_image.height;
    }
}

slint

// nine-slice scaling
export component Example inherits Window {
    width: 100px;
    height: 150px;
    VerticalLayout {
        Image {
            source: @image-url("https://interactive-examples.mdn.mozilla.net/media/examples/border-diamonds.png", nine-slice(30 30 30 30));
        }
    }
}

slint

Use the `@image-url` macro to specify the image’s path.

source-clip-x

int default: 0

source-clip-y

int default: 0

source-clip-width

int default: source.width - source.clip-x

source-clip-height

int default: source.height - source.clip-y

Properties in source image coordinates that define the region of the source image that is rendered. By default the entire source image is visible:

Accessibility

Alternative text

Consider giving an alternative text description of your image by setting the accessible-label property:

Image {
    width: 100px;
    height: 100px;
    source: @image-url("slint-logo.png");
    accessible-label: "Slint logo";
}

slint

Filtering out images for users of assistive technologies

By default, images have the accessible-role property set to image. If your image is purely decorative and doesn’t convey any information, consider removing it from the accessibility tree:

Image {
    source: @image-url("mini-banner.png");
    accessible-role: none;
}

slint
