Rectangle

By default, a Rectangle is just an empty item that shows nothing. By setting a color or configuring a border, it’s then possible to draw a rectangle on the screen.

When not part of a layout, its width and height default to 100% of the parent element.

export component ExampleRectangle inherits Window {
    width: 200px; height: 800px; background: transparent;

    Rectangle {
        x: 10px; y: 10px;
        width: 180px;
        height: 180px;
        background: #315afd;
    }

    // Rectangle with a border
    Rectangle {
        x: 10px; y: 210px;
        width: 180px;
        height: 180px;
        background: green;
        border-width: 2px;
        border-color: red;
    }

    // Transparent Rectangle with a border and a radius
    Rectangle {
        x: 10px; y: 410px;
        width: 180px;
        height: 180px;
        border-width: 4px;
        border-color: black;
        border-radius: 30px;
    }

    // A radius of width/2 makes it a circle
    Rectangle {
        x: 10px; y: 610px;
        width: 180px;
        height: 180px;
        background: yellow;
        border-width: 2px;
        border-color: blue;
        border-radius: self.width/2;
    }
}

slint

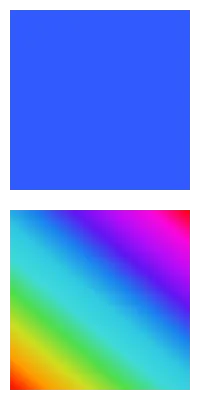

Properties

background

brush default: transparent

The background brush of this Rectangle.

property <brush> rainbow-gradient: @linear-gradient(40deg, rgba(255, 0, 0, 1) 0%, rgba(255, 154, 0, 1) 10%, rgba(208, 222, 33, 1) 20%,rgba(79, 220, 74, 1) 30%, rgba(63, 218, 216, 1) 40%, rgba(47, 201, 226, 1) 50%, rgba(28, 127, 238, 1) 60%, rgba(95, 21, 242, 1) 70%, rgba(186, 12, 248, 1) 80%, rgba(251, 7, 217, 1) 90%, rgba(255, 0, 0, 1) 100%);

Rectangle {
    x: 10px;
    y: 10px;
    width: 180px;
    height: 180px;
    background: #315afd;
}


Rectangle {
    x: 10px;
    y: 210px;
    width: 180px;
    height: 180px;
    background: rainbow-gradient;
}

slint

border-color

brush default: transparent

Rectangle {
    width: 200px;
    height: 200px;
    border-width: 10px;
    border-color: lightslategray;
}

slint

The color of the border.

Caution

The default border-width is 0px, so the border is invisible. After setting a color also ensure that the border-width is set to a non-zero value.

border-width

length default: 0

Rectangle {
    width: 200px;
    height: 200px;
    border-width: 30px;
    border-color: lightslategray;
}

slint

The width of the border.

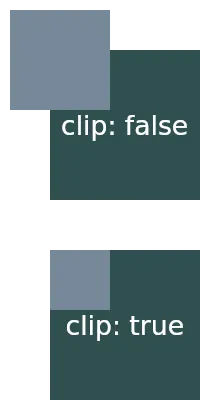

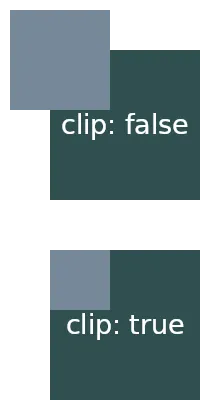

clip

bool default: false

// clip: false; the default
Rectangle {
    x: 50px; y: 50px;
    width: 150px;
    height: 150px;
    background: darkslategray;
    Rectangle {
        x: -40px; y: -40px;
        width: 100px;
        height: 100px;
        background: lightslategray;
    }
}

// clip: true; Clips the children of this Rectangle
Rectangle {
    x: 50px; y: 250px;
    width: 150px;
    height: 150px;
    background: darkslategray;
    clip: true;
    Rectangle {
        x: -40px; y: -40px;
        width: 100px;
        height: 100px;
        background: lightslategray;
    }
}

slint

By default, when child elements are outside the bounds of a parent, they are still shown. When this property is set to true, the children of this Rectangle are clipped and only the contents inside the elements bounds are shown.

Border Radius Properties

border-radius

length default: 0

The size of the radius. This single value is applied to all four corners.

To target specific corners with different values use the following properties:

border-top-left-radius

length default: 0px

border-top-right-radius

length default: 0px

border-bottom-left-radius

length default: 0px

border-bottom-right-radius

Drop Shadows

To achieve the graphical effect of a visually elevated shape that shows a shadow effect underneath the frame of an element, it’s possible to set the following drop-shadow properties:

drop-shadow-blur

length default: 0px

The radius of the shadow that also describes the level of blur applied to the shadow. Negative values are ignored and zero means no blur.

drop-shadow-color

color default: a transparent color

The base color of the shadow to use. Typically that color is the starting color of a gradient that fades into transparency.

drop-shadow-offset-x

length default: 0px

The horizontal distance of the shadow from the element’s frame.

drop-shadow-offset-y

length default: 0px

The vertical distance of the shadow from the element’s frame.
